Automatic Cleaning System
Solar PV Panel Cleaning Makes Solar Power Plants MoreEfficient
Proven Cleaning System for Solar PV Professional’s
Professional, smart AS01 series photovoltaic cleaning system, which is designed, researched and developed. It is suitable for farming photovoltaic power station, barren mountain power station and floating photovoltaic power station where the big solar panel cleaning system can’t get into.
AS01 system is simple operation and maintenance; easy carrying and low cost of usage. 2 persons can clean 1.5~2MWp photovoltaic panels per day.
AS01 system is light, small and easy carrying, can clean the dust with high efficiency in farming photovoltaic power station and barren mountain power station, which with large slope, multi-angles, distributed mounting, different heights/ arrays. Safe, stable, reliable and efficiently solve the difficult technical problem with low efficiency, high cost in farming photovoltaic/ barren mountain power station.
Features:

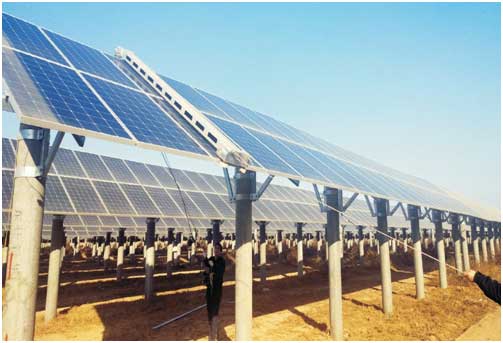

AS01: photovoltaic power station cleaning system, walking with frame panel rail, running multiple times under the control of switch and remote controller, aim at fully cleaning for photovoltaic panel surface.
AS01: system is lithium battery, external power source or generator powered; easy, simple and flexible usage.
In farming photovoltaic power station, barren mountain/ floating photovoltaic power station, different heights array can’t be connected as one lot for operating, manual lifting to another array. Manual monitoring the control equipment, 2 persons can finish the cleaning of 1.5-2MWp photovoltaic power station per day
|
Model Parameter
|
AS01-2030
|
AS01-3340
|
AS01-4060
|
Remarks
|
|
Working
Mode
|
Manual
Monitoring
|
|
|
Operating
Voltage
|
24V
|
|
|
Power
Supply Mode
|
Lithium
Battery+ External Power Source+ Generator
|
Lithium
Battery On Back
|
|
Driving
Mode
|
Motor
Output Drive
|
|
|
Walking
Mode
|
Walking
Motor Drive Walking Tracks
|
|
|
Cleaning
Bush
|
Dry
Cleaning PVC Double Bush Roller（No Water）
|
|
|
Control
System
|
Switch/
Remote Control
|
|
|
Working
Temperature
|
-40~70°C
|
|
|
Noise
|
<35db
|
|
|
Working
Speed
|
7~8m/min
|
|
|
Motor
|
159W
|
270W
|
|
|
Length
of Brush Roller
|
2030mm
|
3340mm
|
4060mm
|
Size
Can Be Custom Made
|
|
Working
Efficiency Per Day
|
1~1.2MWp
|
1.5~2MWp
|
1.5~2MWp
|
|
|
Weight
|
22kg
|
31kg
|
36kg
|
Battery
Not Included
|
|
Size
|
2400*540*130mm
|
3700*540*130mm
|
4400*540*120mm
|
Size
Can Be Custom Made
|
|
|
|
|
|
|
|
|
Model AS02
Professional AS02 series photovoltaic cleaning system, which is designed, researched and developed, made for the cleaning of farming photovoltaic power station, agriculture greenhouse power station.
AS02 system is simple maintenance; easy carrying and low cost of usage. 2 persons can clean 1.5~2MWp photovoltaic panels per day.
AS02 system is light, small and easy moving, can clean the dust with high efficiency in farming photovoltaic power station and agriculture greenhouse power station, which with high ground clearance panel mountings, different panel mounted ways. Safe, stable, reliable and efficiently solve the difficult technical problem with low efficiency, high cost in farming photovoltaic / agriculture greenhouse power station.
Features
AS02 photovoltaic power station cleaning system, walking with frame panel rail, running multiple times under manual pull, aim at fully cleaning for photovoltaic panel surface.
AS02 system is back type lithium battery power supply, easy, convenient and low cost usage.
In farming photovoltaic/ agriculture greenhouse power station, high ground clearance panel mountings, different panel mounted ways, equipment can’t walk automatically.
AS02 uses manual pull as the simplest way to realize the automatic walking of cleaning. 2 persons can finish the cleaning of 1.5-2MWp photovoltaic power station per day.
|
Model Parameter
|
AS02-3340
|
AS02-5000
|
A11-6600
|
Remarks
|
|
Working Mode
|
Semi-Automatic
|
|
|
Operating Voltage
|
24V
|
|
|
Power Supply Mode
|
Lithium Battery Power Supply
|
24V
|
|
Driving Mode
|
Motor Output Drive
|
|
|
Walking Mode
|
Manual Pull Walking
|
|
|
Cleaning Bush
|
Dry Cleaning PVC Single Bush Roller （No Water）
|
|
|
Control System
|
Switch Control
|
|
|
Working Temperature
|
-40~70°C
|
|
|
Noise
|
<35db
|
|
|
Working Speed
|
Manual Control
|
Affected by Working
Environment
|
|
Motor
|
120W
|
180W
|
240W
|
|
|
Length of Brush Roller
|
3340mm
|
5000mm
|
6600mm
|
Size Can Be Custom Made
|
|
Working Efficiency Per Day
|
1.0~1.5MWp
|
1.5~2.0MWp
|
1.5~2.0MWp
|
|
|
Weight
|
25kg
|
30kg
|
35kg
|
Battery Not lncluded
|
|
Size
|
3600*400*130mm
|
5300*400*130mm
|
6900*400*120mm
|
Size Can Be Custom Made
|
